DN50-700 Remote Control Float Valve with PN10-25 Pressure Rating and Fusion Bonded Epoxy Coating
| Place of Origin | China |
|---|---|
| Brand Name | YOUWEI |
Product Details
| Material | Casting,Brass,Stainless Steel,Ductile Iron,GGG50 | Port Size | DN50-700 |
|---|---|---|---|
| Pressure | Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI | Temperature Of Media | Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ |
| Media | Water | Application | General,irrigation,water Distribution,Industry,Water System |
| Structure | Control Valve | Standard Or Nonstandard | Standard |
| Product Name | A100 Remote Control Float Valve Manufacturer | Ductile Iron Water Control Valve | Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 |
| Size | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 | Connection | Flange Ends,Double Flanged,BSP,Socket Ends,Female Thread |
| Body Material | Ductile Iron,DI/CI,DI,cast Iron | Color | Blue,Customer's Request,Customer's Requirement,Yellow,GREY |
| Valve Type | Control Valve | Seal | Rubber Lined,Metal,PTFE |
| Highlight | DN50-600 Remote Control Float Valve,PN10-25 Hydraulic Water Level Control Valve,Fusion Bonded Epoxy Coating Ductile Iron Water Control Valve |
||
Product Description

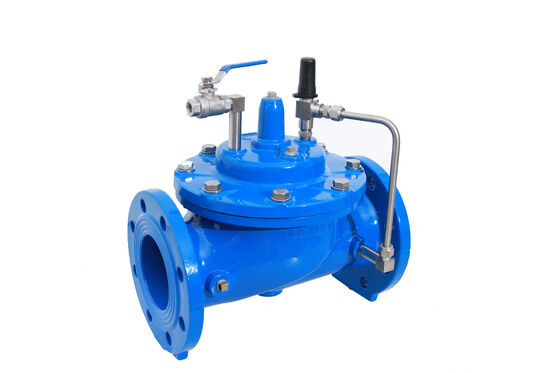

A100 Remote Control Float Valve
Looking for a reliable A100 Remote Control Float Valve manufacturer? We specialize in high-quality ductile iron water level control valves for municipal and industrial projects. Our valves are 100% pressure tested, ISO certified, and available for fast delivery to Vietnam and Southeast Asia.
Product Overview
The A100 Remote Control Float Valve is a diaphragm-type hydraulic control valve designed to accurately control water levels in tanks, reservoirs, and towers. By sensing water level through a high-precision pilot float, the main valve opens or closes automatically to prevent overflow or dry-running conditions.
Factory Advantage: As a direct manufacturer, we provide customized A100 valves with various pressure ratings (PN10/16/25) and coating thicknesses to meet specific project requirements in Vietnam and other international markets.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Model | A100 Series |
| Size Range | DN50 - DN600 (2" to 24") |
| Body Material | Ductile Iron GGG40 / GGG50 (ASTM A536) |
| Coating | Fusion Bonded Epoxy (FBE) Coating, Min. 250μm |
| Pilot & Tubing | Stainless Steel 304 / 316 (Anti-Corrosive) |
| Working Pressure | PN10, PN16, PN25 |
| Connection Standard | EN1092-2, ANSI B16.5, BS4504 |
| Media | Potable Water, Irrigation Water, Neutral Liquids |
Key Benefits
- Precise Level Management: Non-modulating service ensures the valve is either fully open or drip-tight closed, reducing energy loss and pump wear.
- Corrosion Resistance: The internal and external epoxy coating is certified for drinking water applications, ensuring long-term durability in humid climates like Vietnam.
- Easy Maintenance: Top-entry design allows for diaphragm and internal part inspection without removing the valve from the main pipeline.
- Anti-Water Hammer: Hydraulic closing speed is controlled to prevent dangerous pressure surges in the system.
