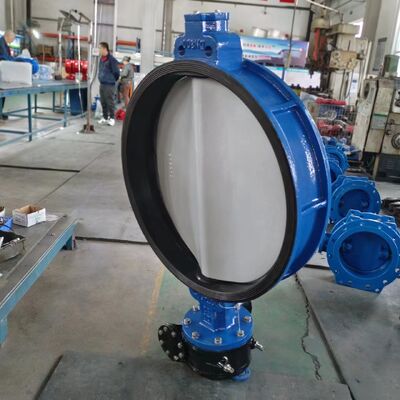

DN800 Wafer Type Butterfly Valve with Bidirectional Flow for Efficient Large-Diameter Flow Control
| Place of Origin | China |
|---|---|
| Brand Name | YOUWEI |
| Certification | WARS CE EAC |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Casting,Brass,Stainless Steel,Ductile Iron,GGG40 | Port Size | DN50-DN1200,Standard,2"-24",DN50-800,3/4" |
|---|---|---|---|
| Power | Manual,Electrical Actuated,Hydraulic,Handwheel Operated,GO | Pressure | Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI |
| Temperature Of Media | Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ | Media | Water,Oil Etc.,Gas And So On |
| Application | General,irrigation,water Distribution,Industry,Water System | Structure | Gate,Butterfly,Non-Rising Gate Valve |
| Standard Or Nonstandard | Standard | Product Name | Gate Valve,Cast Iron Electric Gate Valve With Non-rising Stem DN40-DN600,DIN/BS Double Socket Type Resilient Seat Gate Valve,steel 2cr13 Stem Handwheel Api 6a Welhead Safety Gate Valve Stem Cap,3/4" Cast Iron Handle OEM 200 Wog Home Depot Brass Gate Valve |
| Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 | Size | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 |
| Connection | Flange Ends,Double Flanged,BSP,Socket Ends,Female Thread | Body Material | Ductile Iron,DI/CI,DI,cast Iron,Brass |
| Color | Blue,Customer's Request,Customer's Requirement,Yellow,GREY | Medium | Water,Water Oil Gas |
| Type | Gate Valve,Normal Open,2-way,Non-Rising Stem/ NRS | Valve Type | Gate Valve |
| Seal | Rubber Lined,Metal,PTFE | ||
| Highlight | DN800 Butterfly Valve,Wafer Type Butterfly Valve,Bidirectional Flow Butterfly Valve |
||
Product Description
Classic and Efficient DN800 Wafer Butterfly Valve
The preferred choice for stable flow control in large-diameter piping systems
Product Overview
Our DN800 Wafer Type Butterfly Valve delivers superior performance for reliable, efficient, and economical flow regulation. Engineered to ANSI/API standards, this valve provides excellent shut-off capability, durability, and ease of operation across various industrial applications including water treatment, HVAC, power generation, and process industries.
Key Features & Benefits
- Robust Construction: High-grade materials including ductile iron, carbon steel, or stainless steel provide exceptional strength and corrosion resistance
- Superior Sealing: Resilient seat options (EPDM, NBR, or PTFE) ensure bubble-tight sealing under varying pressure and temperature conditions
- Compact Wafer Design: Simplified installation between ANSI flanges reduces space requirements, weight, and overall system costs
- Low Torque Operation: Streamlined disc design and quality bearing system minimize operating torque with multiple actuation options
- Bidirectional Flow: Reliable sealing and control for flow in either direction enhances application versatility
- Long Service Life: Minimal maintenance design with protected stem and easily replaceable seat components
Technical Specifications
| Specification | Details |
|---|---|
| Size | DN800 (32") |
| Type | Wafer Style, Centric Design |
| Pressure Rating | PN10/PN16, ANSI Class 150 (Standard) |
| Standards | ISO 5752, API 609 |
| Flange Connection | ANSI B16.1/B16.5 or EN 1092 |
| Body Materials | Ductile Iron (GGG50), Carbon Steel (WCB), Stainless Steel (CF8/CF8M) |
| Disc Materials | Stainless Steel (SS316), Ductile Iron with Ni-Plating or Epoxy Coating |
| Seat Materials | EPDM (Standard), NBR, Viton, PTFE |
| Stem Material | Stainless Steel (17-4PH or equivalent) |
| Operating Temperature | Standard: -10°C to +120°C (seat dependent) |
| Actuation Options | Manual (Lever/Gear), Pneumatic, Electric |
Typical Applications
- Water & Wastewater Treatment Plants
- Cooling Water Systems & HVAC
- Power Generation Facilities
- Chemical & Process Industries
- Irrigation & Fire Protection Systems
- General Industrial Services
Why Choose Our DN800 Wafer Butterfly Valve?
This valve represents the optimal balance of performance, reliability, and value for large-diameter applications. Designed to reduce total cost of ownership through energy efficiency, minimal maintenance, and extended service intervals, it's the trusted choice for engineers and contractors seeking proven solutions for critical flow control tasks.
