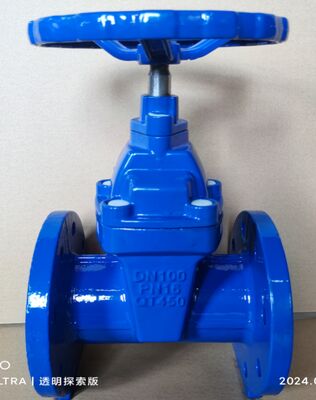

Z45X BS 5163 Non-Rising Stem Resilient Seated Gate Valve with PN16 Pressure Rating and Ductile Iron Body

  • Z45X BS 5163 Non-Rising Stem Resilient Seated Gate Valve with PN16 Pressure Rating and Ductile Iron Body
Place of Origin China
Brand Name YOUWEI/OEM
Product Details
Material Casting,Brass,Stainless Steel,Ductile Iron,GGG40 Port Size DN50-DN1200,Standard,2"-24",DN50-800,3/4"
Power Manual,Electrical Actuated,Hydraulic,Handwheel Operated,GO Pressure Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI
Temperature Of Media Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ Media Water,Oil Etc.,Gas And So On
Application General,irrigation,water Distribution,Industry,Water System Structure Gate,Butterfly,Non-Rising Gate Valve
Standard Or Nonstandard Standard Product Name Gate Valve,Cast Iron Electric Gate Valve With Non-rising Stem DN40-DN600,DIN/BS Double Socket Type Resilient Seat Gate Valve,steel 2cr13 Stem Handwheel Api 6a Welhead Safety Gate Valve Stem Cap,3/4" Cast Iron Handle OEM 200 Wog Home Depot Brass Gate Valve
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Size DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100
Connection Flange Ends,Double Flanged,BSP,Socket Ends,Female Thread Body Material Ductile Iron,DI/CI,DI,cast Iron,Brass
Color Blue,Customer's Request,Customer's Requirement,Yellow,GREY Medium Water,Water Oil Gas
Type Gate Valve,Normal Open,2-way,Non-Rising Stem/ NRS Valve Type Gate Valve
Seal Rubber Lined,Metal,PTFE
Highlight

PN16 Pressure Rating Gate Valve

,

Ductile Iron Body Resilient Seated Gate Valve

,

BS 5163 Standard Non-Rising Stem Gate Valve
Leave a Message
Product Description
Z45X BS 5163 Non-Rising Stem Resilient Seated Gate Valve PN16 - Ductile Iron Body
The Z45X is an industrial-grade, non-rising stem resilient seated gate valve fully compliant with BS 5163 British Standard and PN16 pressure rating. Featuring a fully rubber-encapsulated wedge for zero-leakage sealing, this valve is engineered for water treatment, municipal engineering, and industrial piping networks with seamless adaptation to GOST and other international standards.
Core Specifications
Model Z45X (Plain Type / Standard)
Standards Manufacturing: BS 5163 / DIN 3352
Flange Connections: BS 4504 / EN 1092-2 / GOST 33259
Pressure Rating PN16 (1.6 MPa)
Body Material Ductile Iron (GGG40/50)
Sealing Material EPDM/NBR Fully Encapsulated Wedge (Resilient Wedge)
Operation Handwheel Operated
Key Features
  • Zero-Leakage Sealing Technology: High-quality elastic rubber (EPDM/NBR) encapsulation ensures tight bi-directional shut-off under PN16 pressure
  • Space-Saving Non-Rising Stem Design: Internal thread structure maintains constant valve height, ideal for limited spaces like underground pipe galleries
  • Multi-Standard Compatibility: High-precision flange machining connects easily to GOST, DIN, and ANSI standard piping systems
  • Long-Lasting Corrosion Protection: Electrostatic epoxy resin powder coating (minimum 250μm) provides exceptional corrosion resistance
  • Low Maintenance Costs: Smooth, flat-bottom seat design prevents debris accumulation and reduces operating torque
Applications
  • Municipal Water Supply & Drainage: Main control valves for city pipe networks
  • Firefighting Systems: Reliability-certified water supply control for pump rooms
  • Industrial Water Treatment: Filtration systems and circulating water pipelines
  • Irrigation Engineering: Large-scale agricultural drainage and supply control
SEO Keywords
Z45X Gate Valve Resilient Seated Gate Valve BS 5163 Valve PN16 Gate Valve Non-rising stem gate valve Ductile iron water valve GOST compatible valve Soft sealing gate valve 30s41nj alternative
