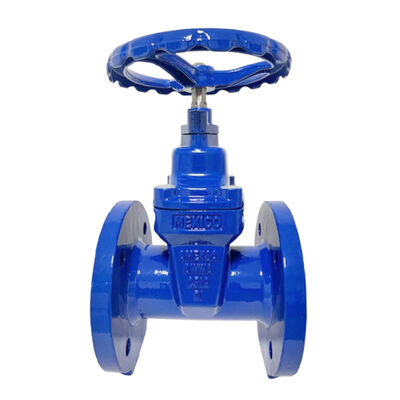

AME-CRC 509 Resilient Seat Gate Valve with Bidirectional Bubble-Tight Seal, Full-Bore Design, and Low-Torque Operation for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | YOUWEI |
| Certification | WARS CE EAC |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Casting,Brass,Stainless Steel,Ductile Iron,GGG40 | Port Size | DN50-DN1200,Standard,2"-24",DN50-800,3/4" |
|---|---|---|---|
| Power | Manual,Electrical Actuated,Hydraulic,Handwheel Operated,GO | Pressure | Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI |
| Temperature Of Media | Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ | Media | Water,Oil Etc.,Gas And So On |
| Application | General,irrigation,water Distribution,Industry,Water System | Structure | Gate,Butterfly,Non-Rising Gate Valve |
| Standard Or Nonstandard | Standard | Product Name | Gate Valve,Cast Iron Electric Gate Valve With Non-rising Stem DN40-DN600,DIN/BS Double Socket Type Resilient Seat Gate Valve,steel 2cr13 Stem Handwheel Api 6a Welhead Safety Gate Valve Stem Cap,3/4" Cast Iron Handle OEM 200 Wog Home Depot Brass Gate Valve |
| Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 | Size | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 |
| Connection | Flange Ends,Double Flanged,BSP,Socket Ends,Female Thread | Body Material | Ductile Iron,DI/CI,DI,cast Iron,Brass |
| Color | Blue,Customer's Request,Customer's Requirement,Yellow,GREY | Medium | Water,Water Oil Gas |
| Type | Gate Valve,Normal Open,2-way,Non-Rising Stem/ NRS | Valve Type | Gate Valve |
| Seal | Rubber Lined,Metal,PTFE | ||
| Highlight | Bidirectional Bubble-Tight Seal Gate Valve,Full-Bore Design Resilient Seat Gate Valve,Low-Torque Design Industrial Gate Valve |
||
Product Description
Built for Critical Processes｜AME-CRC 509 Resilient Gate Valve
Ensuring zero media loss and zero operational downtime in demanding applications where reliability is non-negotiable.
AME-CRC 509 Resilient Seat Gate Valve: Defining Reliability, Securing Every Critical Process
In demanding applications where zero leakage, long service life, and minimal maintenance are essential, the AME-CRC 509 Resilient Seat Gate Valve delivers uncompromising performance. Engineered as durable insurance for your entire fluid handling system, this valve features innovative resilient sealing design and robust construction to ensure dependable performance from water treatment and municipal networks to industrial cooling systems.
Core Advantages: Why the CRC 509 is Your Intelligent Choice
Ultimate Seal, Drop-Tight Performance
Advanced resilient seat with fully encapsulated high-performance rubber or EPDM creates bidirectional bubble-tight sealing against the gate, eliminating internal leakage. Self-compensating design automatically adjusts for minor wear over time.
Exceptional Durability for Long-Term Value
Full-bore design provides unobstructed flow path with very low flow resistance, reducing energy consumption. Premium cast body with advanced epoxy coating offers superior corrosion resistance. Reinforced disc combines strength and sealability.
Smooth Operation & Simplified Maintenance
Low-torque design ensures easy operation even in large-diameter applications. Modular internals allow for easy in-line maintenance with seat/disc sealing assembly replaceable under pressure, significantly reducing downtime.
Key Technical Specifications
| Type | Resilient Seat, Rising Stem Gate Valve |
| Size Range | DN50 - DN600 (2" - 24") | Standard & Custom Sizes Available |
| Pressure Rating | PN10/16, ANSI Class 150/300 |
| End Connections | Flanged, compliant with ISO, DIN, ANSI, and other international standards |
| Suitable Media | Water, Sewage, Neutral Gases, Oils, and a wide range of mild chemical media |
| Actuation | Manual (Handwheel / Gear Operator), Electric, or Pneumatic Actuation Available |
| Testing | Sealed in accordance with stringent API 598, EN 12266, or equivalent standards |
Ideal Application Scenarios
The CRC 509 is the ideal choice for isolation and control in:
Municipal Water: Potable water distribution, fire protection systems, wastewater treatment plants
Building Services: HVAC, plumbing, and drainage systems in commercial complexes, hospitals, and institutions
Industrial Processes: Cooling water, circulating water, power generation, and chemical plants
Infrastructure & Irrigation: Main line isolation, pump stations, and large-scale agricultural irrigation networks
Choosing AME-CRC 509 is an Investment in Peace of Mind
Selecting the CRC 509 means investing in decades of operational security for your system. It mitigates water loss, production downtime, and environmental risks associated with leakage. Its exceptional reliability translates directly into a lower total cost of ownership and higher operational efficiency.
Request a quote or download the detailed technical brochure today. Let the AME-CRC 509 become the most trusted guardian in your fluid system.
