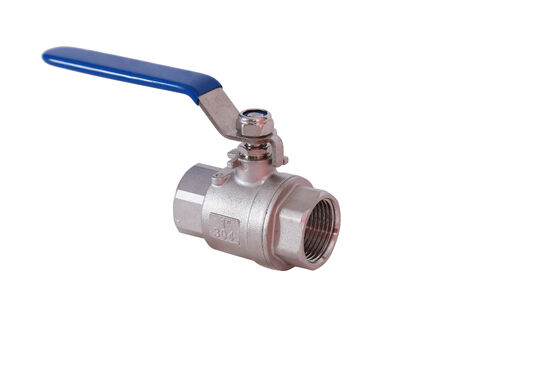

304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control
| Place of Origin | China |
|---|---|
| Brand Name | YOUWEI |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Casting,Brass,Stainless Steel,Ductile Iron,GGG40 | Port Size | DN50-DN1200,Standard,2"-24" |
|---|---|---|---|
| Power | Manual,Electrical Actuated,Hydraulic,Handwheel Operated,GO | Pressure | Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI |
| Temperature Of Media | Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ | Media | Water,Oil Etc.,Gas And So On |
| Application | General,irrigation,water Distribution,Industry,Water System | Structure | Ball |
| Standard Or Nonstandard | Standard | Product Name | Gate Valve,Cast Iron Electric Gate Valve With Non-rising Stem DN40-DN600,DIN/BS Double Socket Type Resilient Seat Gate Valve,steel 2cr13 Stem Handwheel Api 6a Welhead Safety Gate Valve Stem Cap,3/4" Cast Iron Handle OEM 200 Wog Home Depot Brass Gate Valve |
| Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 | Size | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 |
| Connection | Threaded ,BSP,Socket Ends,Female Thread | Body Material | Ductile Iron,DI/CI,DI,cast Iron,Brass |
| Color | Blue,Customer's Request,Customer's Requirement,Yellow,GREY | Medium | Water,Water Oil Gas |
| Type | Ball Valve,Normal Open,2-way,Non-Rising Stem/ NRS | Valve Type | Ball Valve |
| Seal | Rubber Lined,Metal,PTFE | ||
| Highlight | 304 Stainless Steel Ball Valve,Threaded Ball Valve,Full Port Ball Valve |
||
Product Description
304 Threaded Ball Valve
The 304 Threaded Ball Valve is a high-performance industrial valve designed for reliable on/off and flow control in a wide range of fluid handling applications. Constructed from corrosion-resistant 304 stainless steel, this valve is suitable for use with water, oil, gas, steam, and mild chemical media.
Product Overview
This threaded ball valve features screwed ends that allow for easy installation without welding, making it ideal for maintenance, retrofit, and modular piping systems.
Key Features
- Material Excellence: Made from AISI 304 stainless steel, offering excellent corrosion resistance, durability, and hygiene for demanding environments.
- Full Port Design: Provides minimal flow restriction, low pressure drop, and superior flow capacity.
- Threaded Connections: NPT or BSPP threads ensure secure, leak-free installation and easy integration into existing pipelines.
- Quick Operation: Quarter-turn (90°) handle allows for fast opening and closing, improving operational efficiency.
- Robust Sealing: PTFE or reinforced PTFE seats ensure tight sealing, long service life, and compatibility with various media.
- Compact & Lightweight: Easy to handle, install, and maintain, even in tight spaces.
- Multi-Application Suitability: Suitable for industrial, commercial, HVAC, water treatment, and food processing systems.
Technical Specifications
| Specification | Details |
|---|---|
| Body Material | 304 Stainless Steel (AISI 304 / CF8) |
| Seat Material | PTFE, RPTFE, or optional PPL / metal seated versions |
| Connection Type | Threaded (NPT, BSPT, BSPP available) |
| Size Range | ¼" to 4" (DN8 to DN100) |
| Pressure Rating | Class 150 / PN16 (higher ratings available upon request) |
| Temperature Range | -20°C to 200°C (depending on seat material) |
| Operation | Manual lever, gear-operated, or actuator-ready |
| Standards Compliance | ISO, ANSI, DIN, JIS, or as customized |
Applications
- Industrial process lines (chemical, petrochemical, pharmaceutical)
- Water supply and treatment systems
- HVAC, refrigeration, and heating circuits
- Food, beverage, and dairy processing
- Compressed air and gas pipelines
- Marine and shipbuilding applications
- General plumbing and instrumentation systems
Installation & Maintenance
Ensure threads are clean and properly sealed with thread tape or sealant. Align valve orientation according to flow direction (if marked). Avoid over-tightening to prevent thread damage. Periodically check for leaks and operate the valve to maintain seat flexibility.
Benefits
Corrosion-Resistant: Ideal for humid, corrosive, and sanitary environments.
Easy to Install: No welding required, reducing installation time and cost.
Reliable Performance: Durable construction ensures long-term, leak-free service.
Versatile Use: Compatible with a wide range of media and industries.
Easy to Install: No welding required, reducing installation time and cost.
Reliable Performance: Durable construction ensures long-term, leak-free service.
Versatile Use: Compatible with a wide range of media and industries.
