Ductile Iron Wafer Butterfly Valve DN300-DN1200 for High-Flow Media Control
| Place of Origin | China |
|---|---|
| Brand Name | YOUWEI |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Casting,Brass,Stainless Steel,Ductile Iron,GGG40 | Port Size | DN50-DN1200,Standard,2"-24",DN50-800,3/4" |
|---|---|---|---|
| Power | Manual,Electrical Actuated,Hydraulic,Handwheel Operated,GO | Pressure | Medium Pressure,Low Pressure,PN10-16,PN1.0/PN1.6,250PSI |
| Temperature Of Media | Medium Temperature,Normal Temperature,Low Temperature,-10~100℃ | Media | Water,Oil Etc.,Gas And So On |
| Application | General,irrigation,water Distribution,Industry,Water System | Structure | Gate,Butterfly,Non-Rising Gate Valve |
| Standard Or Nonstandard | Standard | Product Name | Gate Valve,Cast Iron Electric Gate Valve With Non-rising Stem DN40-DN600,DIN/BS Double Socket Type Resilient Seat Gate Valve,steel 2cr13 Stem Handwheel Api 6a Welhead Safety Gate Valve Stem Cap,3/4" Cast Iron Handle OEM 200 Wog Home Depot Brass Gate Valve |
| Standard | DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 | Size | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 |
| Connection | Flange Ends,Double Flanged,BSP,Socket Ends,Female Thread | Body Material | Ductile Iron,DI/CI,DI,cast Iron,Brass |
| Color | Blue,Customer's Request,Customer's Requirement,Yellow,GREY | Medium | Water,Water Oil Gas |
| Type | Gate Valve,Normal Open,2-way,Non-Rising Stem/ NRS | Valve Type | Gate Valve |
| Seal | Rubber Lined,Metal,PTFE | ||
| Highlight | Ductile Iron Butterfly Valve,DN300-DN1200 Wafer Butterfly Valve,Wafer-type Large Diameter Butterfly Valve |
||
Product Description

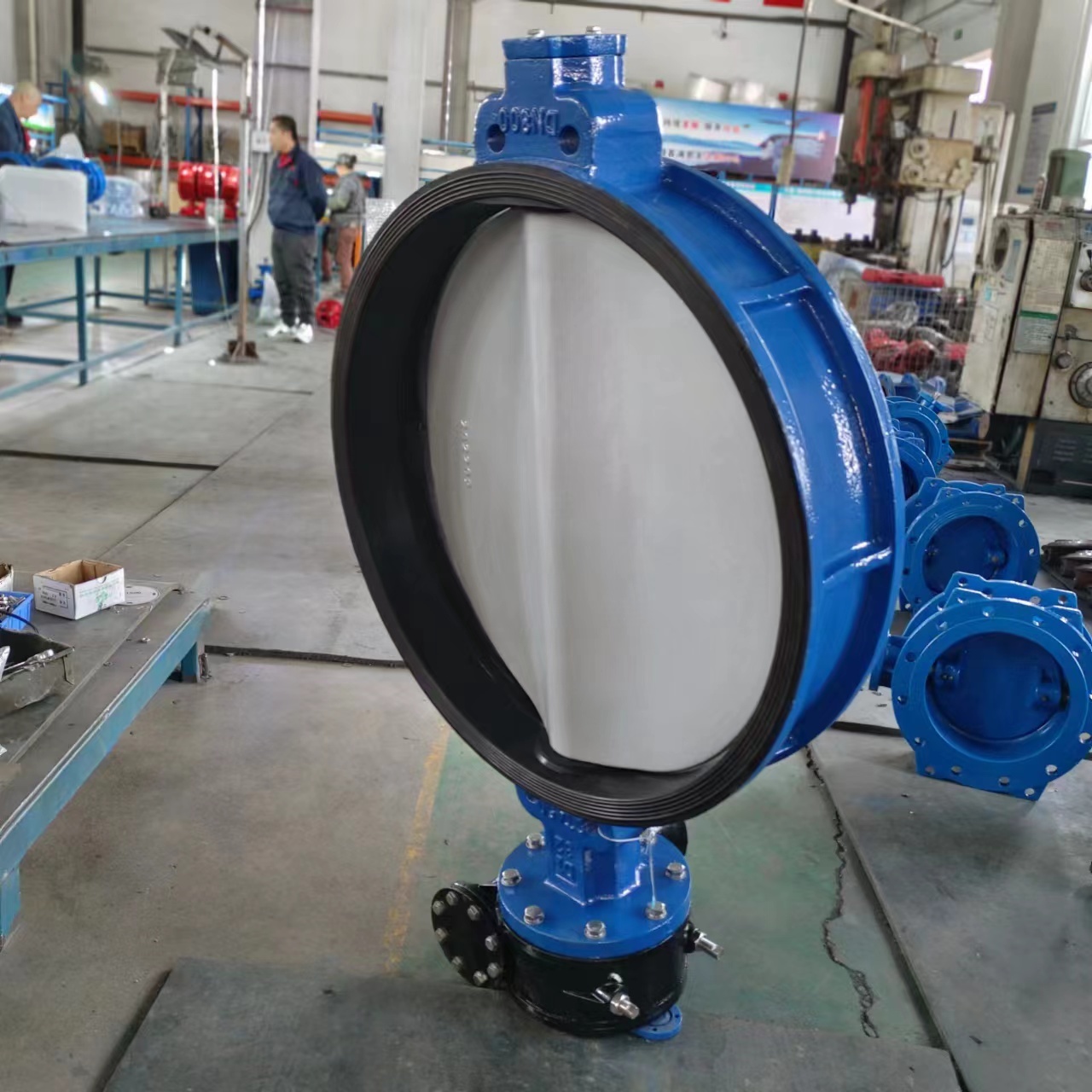

Wafer-type Large Diameter Butterfly Valve
This high-performance wafer-type large diameter butterfly valve is engineered for demanding high-flow media control applications. Manufactured from high-strength ductile iron, it delivers exceptional durability and cost-effectiveness while withstanding high pressure and heavy loads.
Core Advantages and Features
- Robust and Durable Valve Body Material: Constructed from ductile iron with superior mechanical properties compared to standard gray cast iron. Provides strength close to steel, excellent impact resistance, and exceptional toughness for pressure fluctuations and external stresses in large-diameter pipeline systems.
- Optimized Structural Design: Compact wafer-type design saves installation space and cost. Precision-engineered disc and stem enable low-torque operation for smooth opening and closing.
- Reliable Sealing Performance: Equipped with high-performance resilient seats (EPDM or NBR) ensuring bidirectional bubble-tight shut-off. Suitable for water, air, oil, and other neutral media.
- Broad Application Adaptability: Ideal as a reliable shut-off or regulating device in large-diameter pipelines across municipal water supply, power plants, industrial circulating water systems, HVAC, and wastewater treatment.
- Multiple Actuation Options: Compatible with manual gear operators, electric actuators, or pneumatic actuators to meet diverse automation control requirements.
Key Technical Specifications
| Specification | Details |
|---|---|
| Body Material | Ductile Iron (GGG-40/GG50, compliant with ISO 1083 or ASTM A536 standards) |
| Nominal Diameter | DN300 - DN1200 (or larger, customizable upon request) |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Connection Type | Wafer-type (conforms to ISO, DIN, ANSI, and other standard flange face-to-face dimensions) |
| Operation Method | Manual (Lever / Gear), Electric, Pneumatic |
This wafer-type large diameter butterfly valve, crafted from ductile iron, is the optimal solution for large-diameter fluid control applications requiring high strength, long service life, and excellent cost-performance. It transforms material advantages into reliable performance, serving as a fundamental industrial component that ensures safe and efficient pipeline network operation.
