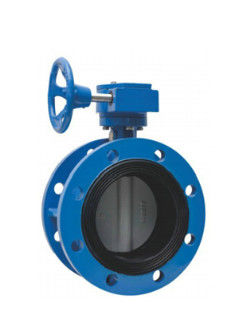

Lightweight Cast Iron Butterfly Valves Flange Type Midline Butterfly Valve PN6 PN10 PN16
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | Flange Type Midline Butterf...ve.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Body Style | Flanged | Test | 100% Leakage Testing |
|---|---|---|---|
| Actuation Method | Manual, Electric, Pneumatic, Hydraulic | Color | Blue, Customized |
| Body | Ductile Iron | Oem | Avaliable |
| Material | Cast Iron | ||
| Highlight | Lightweight Cast Iron Butterfly Valves,Flange Type Midline Butterfly Valve |
||
Product Description
The valve has the advantages of small volume, light weight and good bidirectional sealing performance. It is a kind of valve which can be opened and closed by 90°rotation of butterfly plate. It can not only cut off the medium, but also regulate the flow of medium.
Product Features
1. Small and light, easy to disassemble and repair, can be installed at any position.
2. The structure is simple and compact, and the 90°rotary opening and closing are fast. The gas leakage is zero.
3. Small operating torque, energy saving lightweight.
4. Flow characteristics tend to be straight, with good adjustment performance.
5. The number of opening and closing experiments reaches 10000 times, with a long life.
6. Choose different parts can be applied to a variety of media.
Technical Parameters
Main Technical Parameters
| Test pressure |
PN6 |
Shell: 0.9MPa Seal: 0.66MPa |
|---|---|---|
|
PN10 |
Shell: 1.5MPa Seal: 1.1MPa | |
|
PN16 |
Shell: 2.4MPa Seal: 1.76MPa | |
| Connection end |
Flange: EN1092-2 |
|
| Drive way |
Manual, Worm gear, Electric, Pneumatic |
|
| Applicable temperature |
0℃~80℃ |
|
| Surface treatment |
Epoxy powder coating, 150-500um, according to AWWA C550 standard. |
|
| Application range |
Drinking water, water supply and drainage, sewage treatment, irrigation, fire and other pipelines. |
|
Material of Main Parts
| No. | Component | Material |
|---|---|---|
|
01 |
Body |
Ductile iron GGG50 |
|
02 |
Plate |
Ductile iron plating GGG50 |
|
03 |
Shaft |
Stainless steel |
|
04 |
Bushing |
Nylon 1010 |
|
05 |
Rubber seat |
EPDM |
