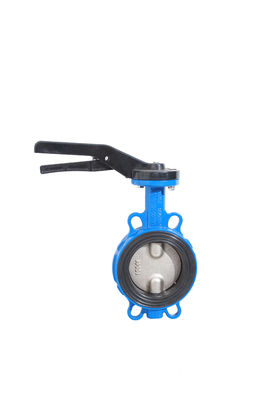

Cast Iron Wafer Type Midline Butterfly Valve For Water Plant And Power Plant
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | Wafer Type Midline Butterfl...ve.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test | 100% Leakage Testing | Color | Blue, Customized |
|---|---|---|---|
| Working Pressure | PN6 PN16 PN10 | Drive Way | Manual, Worm Gear, Electric, Pneumatic |
| Body | Ductile Iron | Applicable Temperature | 0℃~80℃ |
| Highlight | Wafer Type Midline Butterfly Valve,Cast Iron Midline Butterfly Valve,Power Plant Midline Butterfly Valve |
||
Product Description
The valve has compact structure, easy 90°rotary switch, reliable sealing and long service life. It is widely used in water plant, power plant, steel plant, papermaking, chemical industry, diet and other systems for water supply and drainage, as regulation and cut-off use.
Product Features
1. Small and light, easy to disassemble and repair, can be installed at any position.
2. The structure is simple and compact, and the 90°rotary opening and closing are fast. The gas leakage is zero.
3. Small operating torque, energy saving lightweight.
4. Flow characteristics tend to be straight, with good adjustment performance.
5. The number of opening and closing experiments reaches 10000 times, with a long life.
6. Choose different parts can be applied to a variety of media.
Technical Parameters
Main Technical Parameters
| Test pressure |
PN6 |
Shell: 0.9MPa Seal: 0.66MPa |
|---|---|---|
|
PN10 |
Shell: 1.5MPa Seal: 1.1MPa | |
|
PN16 |
Shell: 2.4MPa Seal: 1.76MPa | |
| Drive way |
Manual, Worm gear, Electric, Pneumatic |
|
| Applicable temperature |
0℃~80℃ |
|
| Surface treatment |
Epoxy powder coating, 150-500um, according to AWWA C550 standard. |
|
| Application range |
Drinking water, water supply and drainage, sewage treatment, irrigation, fire and other pipelines. |
|
Material of Main Parts
| No. | Component | Material |
|---|---|---|
|
01 |
Body |
Ductile iron GGG50 |
|
02 |
Plate |
Ductile iron plating GGG50 |
|
03 |
Shaft |
Stainless steel |
|
04 |
Bushing |
Nylon 1010 |
|
05 |
Rubber seat |
EPDM |
