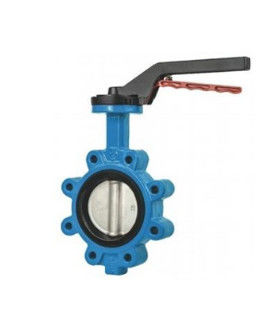

OEM Cast Iron Lug Type Wafer Butterfly Valve For Petroleum And Chemical Industry
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | Lug Type Wafer Butterfly Va...ve.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Body | Ductile Iron GGG50 | Color | Blue, Customized |
|---|---|---|---|
| Test | 100% Leakage Testing | Drive Way | Manual, Worm Gear, Electric, Pneumatic |
| Connection | Wafer Lug | Applicable Temperature | 0℃~80℃ |
| Oem | Avaliable | Media | Water |
| Highlight | OEM Lug Type Wafer Butterfly Valve,OEM Cast Iron Wafer Butterfly Valve,Chemical Industry Wafer Butterfly Valve |
||
Product Description
The valve is applicable to the pipelines of petroleum, chemical industry, food, medicine, papermaking, hydropower, ship, water supply anddrainage, smelting, energy and other systems. It can be used as regulating and closure equipment on various corrosive and non corrosive gas, liquid, semi fluid and solid powder pipes and containers.
Product Features
1. Small and light, easy to disassemble and repair, can be installed at any position.
2. The structure is simple and compact, and the 90°rotary opening and closing are fast. The gas leakage is zero.
3. Small operating torque, energy saving lightweight.
4. Flow characteristics tend to be straight, with good adjustment performance.
5. The number of opening and closing experiments reaches 10000 times, with a long life.
6. Choose different parts can be applied to a variety of media.
Technical Parameters
Main Technical Parameters
|
Test pressure
|
PN6 |
Shell: 0.9MPa Seal: 0.66MPa |
|---|---|---|
|
PN10 |
Shell: 1.5MPa Seal: 1.1MPa | |
|
PN16 |
Shell: 2.4MPa Seal: 1.76MPa | |
|
Drive way
|
Manual, Worm gear, Electric, Pneumatic |
|
|
Applicable temperature
|
0℃~80℃ |
|
|
Surface treatment
|
Epoxy powder coating, 150-500um, according to AWWA C550 standard. |
|
|
Application range
|
Drinking water, water supply and drainage, sewage treatment, irrigation, fire and other pipelines. |
|
Material of Main Parts
| No. | Component | Material |
|---|---|---|
|
01 |
Body |
Ductile iron GGG50 |
|
02 |
Plate |
Ductile iron plating GGG50 |
|
03 |
Shaft |
Carbon steel |
|
04 |
Bushing |
Nylon 1010 |
|
05 |
Rubber seat |
EPDM |
