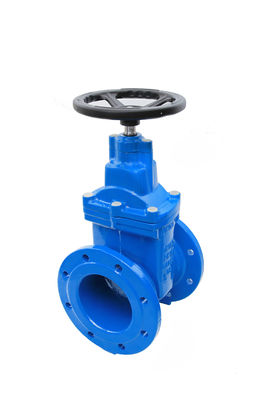

DIN3352 C Type Cast Iron Gate Valves Elastic Sealed Non Rising Stem Gate Valve
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | c-type product manual.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Non-rising Stem, Solid Wedge Disc, Renewable Seat | End Connections | Flanged, Threaded, Or Grooved |
|---|---|---|---|
| Material | Cast Iron | Type | Gate Valve |
| Sealing Type | Soft Seal (EPDM Rubber Or NBR) | Valve Testing | DIN3230 |
| Highlight | C Type Cast Iron Gate Valves,Cast Iron Non Rising Stem Gate Valve,Elastic Sealed Non Rising Gate Valve |
||
Product Description
Technical Specification
| Connection type |
flange, DIN2501, PN10/PN16 |
|---|---|
| Sealing type |
Soft seal (EPDM rubber or NBR) |
| Design standard | DIN3352 |
| Face to face dimensions |
DIN3202/ISO5752 |
| Valve testing |
DIN3230 |
| Working temperature |
NBR≤80℃, EPDM≤120℃ |
| Structural length |
DIN3352 |
Technical Parameters
| Connection type |
flange, DIN2501, PN10/PN16 |
|---|---|
| Sealing type |
Soft seal (EPDM rubber or NBR) |
| Design standard | DIN3352 |
| Face to face dimensions |
DIN3202/ISO5752 |
| Valve testing |
DIN3230 |
| Working temperature |
NBR≤80℃, EPDM≤120℃ |
| Structural length |
DIN3352 |
