Flange End Non-Rising Stem Gate Valves for Medium Temperature Pipeline
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | Non Rising Stem Resilient S...al.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Non-rising Stem, Resilient Seat, Full Bore Design | Valve Type | Gate Valve |
|---|---|---|---|
| Seat Material | Resilient | Body Material | Cast Iron |
| Application | Water And Wastewater Treatment | Drive Way | Manual, Electric, Pneumatic |
Product Description

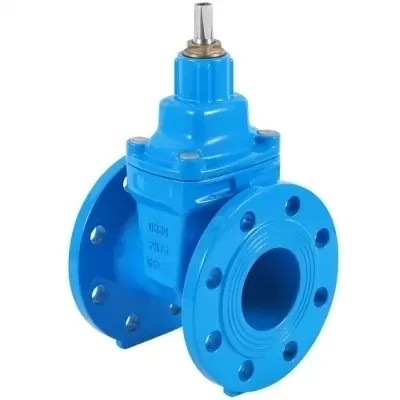

The DIN3352 F4 Cast Iron Resilient Seated Gate Valve with 2Cr13 Trim is a high-performance valve designed for regulating and isolating fluid flow in demanding industrial applications. Constructed from durable cast iron (GG25) , it features a resilient EPDM/NBR rubber-seated wedge that ensures zero leakage and superior sealing even under pressure fluctuations . The 2Cr13 stainless steel stem enhances corrosion resistance and durability, suitable for frequent operation in water, sewage, oil, and gas systems
Product Features
1. Non-toxic anti-corrosion coating: both the inside and outside surface of the valve are non-toxic epoxy powder electrostatic coating, anti-corrosion long life, can be directly used in drinking water, food and medicine industry.
2. Material: the valve body, bonnet, gate and handwheel are all made of nodular iron, with high strength and corrosion resistance. The valve seat and body are fully formed by precision casting without any machining.
3. Three O-ring seal, water pressure under the action of axial self- sealing, no packing seal adjustment trouble. The top dustproof ring prevents external impurities from entering the inside of the shaft seal.
4. When the valve is fully open, the gate is completely lifted off the flow channel and there is no groove at the bottom of the seat, which is not easy to accumulate sundries. It is equivalent to the straight pipe and has the lowest flow resistance.
Technical Specification
1. Design according to EN 1171, BS5163, EN 1074-1 and 2.
2. Face to face dimensions according to BS 5163, DIN3202.
3. Hydraulic test according to EN 12266, IS05208 standard.
4. Flange drilling to EN 1092-2, ISO 7005-2.
Technical Parameters
Main Technical Parameters
|
Test pressure |
PN10 Shell: 1.5MPa |
Seal: 1.1MPa Seal: 1.76MPa Seal: 2.75MPa |
|---|---|---|
| Execution standard |
DIN 1171 |
|
| Drive way |
Manual, Electric, Pneumatic |
|
| Applicable temperature |
0℃~80℃ |
|
| Connection End |
Flange: BS EN1092-2 |
|
| Surface treatment |
Epoxy powder coating, 150-50Oum, according to AWWA C550 standard. |
|
| Application range |
Drinking water, water supply and drainage, sewage treatment, irrigation, air conditioning, fire pipe, etc. |
|
Material of Main Parts
| NO. | Component | Material |
|---|---|---|
|
01 |
Body |
Ductile iron GGG50 |
|
02 |
Flastic wedge |
Ductile iron GGG50/EPDM |
|
03 |
Stem |
Stainless steel Cr13, 304, 316 |
|
04 |
Socket head screw |
Galvanized carbon steel |
|
05 |
Bonnet |
Ductile iron GGG50 |
| 06 |
0-Ring |
NBR or EPDM |
| 07 |
Gland |
Ductile iron GGG50 |
| 08 |
Handwheel |
Ductile iron GGG50 |
| 09 |
Hexagonal bolt |
Galvanized carbon steel |
| 10 |
Flat gasket |
Galvanized carbon steel |
| 11 |
Dust ring |
NBR or EPDM |
| 12 |
Hexagonal bolt |
Galvanized carbon steel |
| 13 |
Flat gasket |
Galvanized carbon steel |
| 14 |
O-Ring |
NBR or EPDM |
| 15 |
Thrust ring |
Brass H62 or Hpb59-1 |
| 16 |
Cover gasket |
EPDM |
| 17 |
Disc nut |
Bronze ZQSn5-5-5 |
Note: The above material list is multiple and parallel, the first one is the basic configuration, if you have other requirements, please specify in the order.
Optional accessories: hand wheel drive cap, electric device, pneumatic device, 2Cr13, 304, 316 stem H62, Hpb59-1 copper thrust ring.
