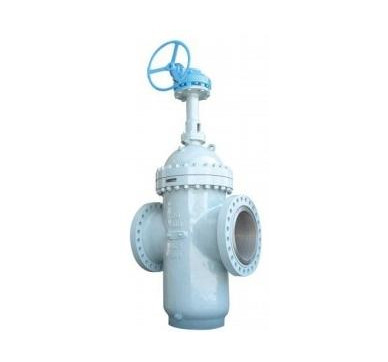

Industrial Cast Steel ANSI Flat Gate Valve / Flat Slide Valve Customized
| Place of Origin | China |
|---|---|
| Brand Name | Youwei Fluid |
| Certification | Quality system certificate |
| Document | ANSI Flat Gate Valve.pdf |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | ANSI Flat Gate Valve,Cast Steel Flat Slide Valve |
||
|---|---|---|---|
Product Description
Technical Parameters
| No. | Parts | Standard material | Acidic environment | Low temperature environment |
|---|---|---|---|---|
|
1 |
Body |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 LCB |
|
2 |
Seat |
ASTM A105N+ENP |
ASTM A105N+ENP |
ASTM A352 LF2+ENP |
|
3 |
Ram |
ASTM A105N+ENP |
ASTM A105N+ENP |
ASTM A352 LF2+ENP |
|
4 |
Stem |
ASTM A182 F6a |
ASTM A182 F6a(NACE) |
ASTM A182 F6a |
|
5 |
Gasket |
SS304+Graphite wrap pad/RTJ ring |
SS304+Graphite wrap pad/RTJ ring |
SS304+Graphite wrap pad/RTJ ring |
|
6 |
Screw bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A320 L7 |
|
7 |
Nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 7 |
|
8 |
Toggle |
ASTM A276 410 |
ASTM A276 410(NACE) |
ASTM A276 316 |
|
9 |
Packing |
Graphite |
Graphite |
Graphite |
|
10 |
Screw bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A320 L7 |
|
11 |
Nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 7 |
|
12 |
Support |
Carbon steel |
Carbon steel |
Carbon steel |
|
13 |
Bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A320 L7 |
|
14 |
Bearing |
Carbon steel |
Carbon steel |
Carbon steel |
|
15 |
Stem nut |
ASTM A439 D-2 |
ASTM A439 D-2 |
ASTM A439 D-2 |
|
16 |
Bearing housing |
Carbon steel |
Carbon steel |
Carbon steel |
|
17 |
Gear wheel |
Ductile iron |
Ductile iron |
Ductile iron |
|
18 |
Nut |
Carbon steel |
Carbon steel |
Carbon steel |
|
19 |
Dust cover body |
Polycarbonate |
Polycarbonate |
Polycarbonate |
|
20 |
Dust cap |
RPTFE |
RPTFE |
RPTFE |
|
21 |
Spring |
17-7PH/InconelX-750 |
17-7PH/InconelX-750 |
17-7PH/InconelX-750 |
|
22 |
O-ring |
VITON A |
VITON A |
HNBR |
|
23 |
O-ring |
VITON A |
VITON A |
HNBR |
|
24 |
Oil cup |
Carbon steel |
Carbon steel |
Carbon steel |
|
25 |
Grease injection valve |
Stainless steel |
Stainless steel |
Stainless steel |
|
26 |
Bolt |
Stainless steel |
Stainless steel |
Stainless steel |
|
27 |
Blow-down valve |
Stainless steel |
Stainless steel |
Stainless steel |
|
28 |
Bolt |
Stainless steel |
Stainless steel |
Stainless steel |
|
29 |
Dogtag |
SS304 |
SS304 |
SS304 |
|
30 |
Rivet |
SS304 |
SS304 |
SS304 |
|
31 |
Bonnet |
ASTM A105N |
ASTM A105N |
ASTM A350 LF2 |
