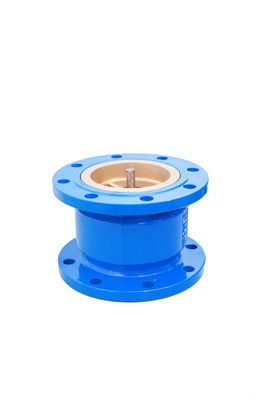

Full Flow Design DIN Silencing Check Valve Cast Iron Any Direction Installation
Place of Origin | China |
---|---|
Brand Name | Youwei Fluid |
Certification | Quality system certificate |
Document | DIN Silencing Check Valve.pdf |
Minimum Order Quantity | 1 |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Check Valve | Material | Cast Iron |
---|---|---|---|
Application | Water, Oil, Gas | Test Pressure | PN10 PN16 PN25 |
Applicable Temperature | 0℃~80℃ | Connection End | Flange: EN 1092-2 |
Highlight | Full Flow Silencing Check Valve,Cast Iron Silencing Check Valve,OEM DIN Silencing Check Valve |
The function of the valve is to prevent the flow in the opposite direction and only allow the medium to flow in one direction. Usually, the valve works automatically. Under the action of fluid pressure flowing in one direction, the valve disc opens; when the fluid flows in the opposite direction, the fluid pressure and the self weight of the valve disc act on the valve seat to cut off the flow. It is not suitable for medium with solid particles and high viscosity.
Product Features
1. Short shutoff stroke of valve core, combined with the closed design of spring speed, can effectively reduce the influence of water hammer.
2. Before the water hammer strikes, the valve has been closed to achieve the mute effect.
3. Full flow design, water loss is very low.
4. Because the use of both ends of the disc guide design, can be applied to any direction of installation.
Technical Parameters
Main Technical Parameters
Test pressure |
PN10 |
Shell: 1.5MPa Seal: 1.1MPa | |
---|---|---|---|
PN16 |
Shell: 2.4MPa Seal: 1.76MPa | ||
PN25 |
Shell: 3.75MPa Seal: 2.75MPa | ||
Applicable temperature |
0℃~80℃ |
||
Connection end |
Flange: EN 1092-2 |
||
Surface treatment |
Epoxy powder coating, 150-500um, according to AWWA C550 standard. |
||
Application range |
Pipes for drinking water, water supply and drainage, sewage treatment, irrigation, air conditioning, fire fighting, etc. shall prevent medium backflow and eliminate water hammer noise. |
Material of Main Parts
No. | Component | Material |
---|---|---|
01 |
Body |
Ductile iron GGG50 |
02 |
Shaft |
Stainless steel 304 |
03 |
Spring |
Stainless steel 304 |
04 |
Hexagonal nut |
Stainless steel 304 |
05 |
Disc |
Ductile iron is copper or brass plated |
06 |
Seat |
Ductile iron is copper or brass plated |
07 |
O-Ring |
NBR or EPDM |
